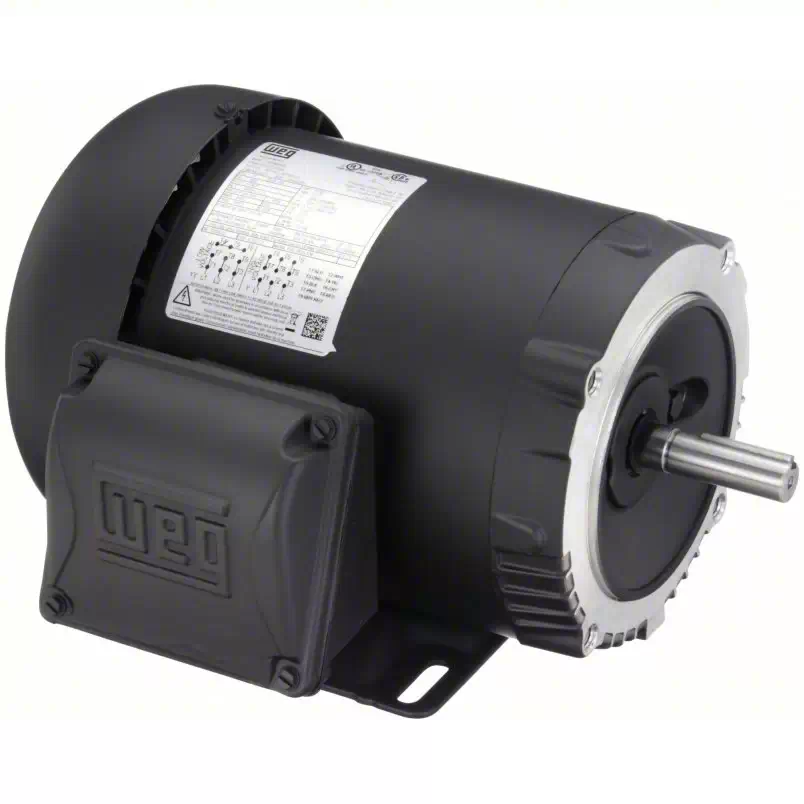

WEG General Purpose Motor: Totally Enclosed Fan Cooled, C-Face/Rigid Base Mount, 1/2 HP, 56C Frame
BrandWEG
Manufacturer Part Number.5018ES3E56C-S
Motor ApplicationGeneral Purpose
PhaseThree
Motor DesignThree-Phase
HP1/2
Nameplate RPM1760 rpm
No. of Speeds1
Voltage208-230/460V AC
Full Load Amps1.91-1.72/0.862 A
Frame56C
Usable @ 208VYes
Usable @ 200VNo
Hz60 Hz
Motor Service Factor1.15
Max. Ambient Temp.40 °C
Motor Thermal ProtectionNone
Duty CycleContinuous
Ins. ClassF
Motor Enclosure DesignTotally Enclosed Fan Cooled
Motor Shaft RotationCW/CCW
Motor Mounting TypeC-Face; Rigid Base
Motor Mounting PositionAll Angle
Inverter RatedYes
Motor Shaft DesignKeyed
Motor Frame MaterialSteel
Shaft Dia.5/8 in
Shaft Length1-7/8 in
Motor BearingsBall
Length Less Shaft9-11/16 in
Overall Length11-9/16 in
Weight21.8 lb
Nominal Efficiency77 %
StandardsCSA; UL
Manufacturers Warranty Length3 yr
Full Load Amps @ 50Hz1.80/0.952; 1.90/0.950 A
HP @ 50Hz1/2 hp
RPM Range1,701-1,800
UNSPSC26101612
Country of OriginVaries (subject to change)
