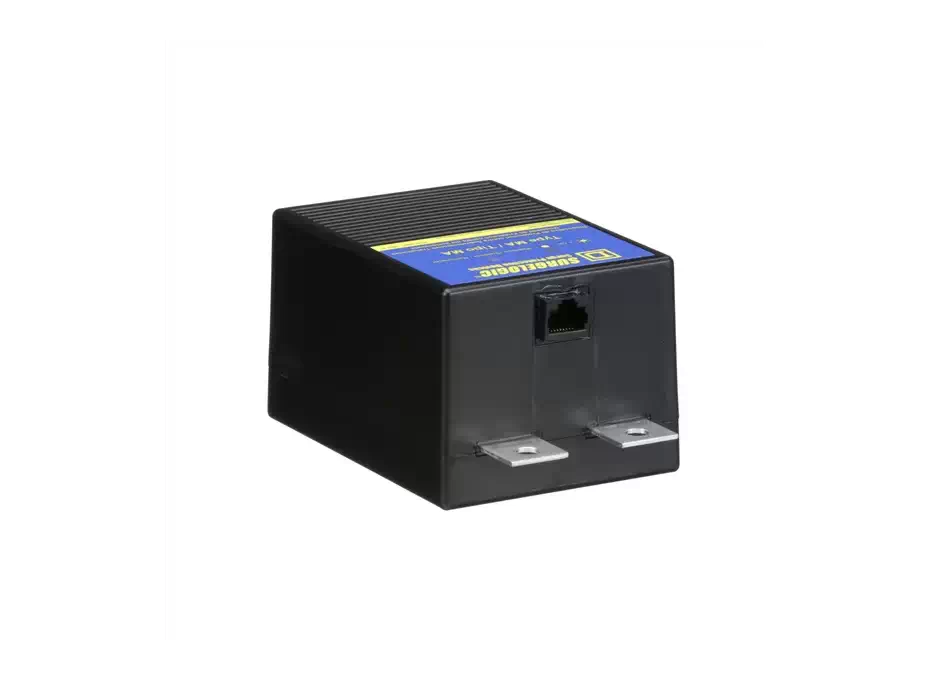

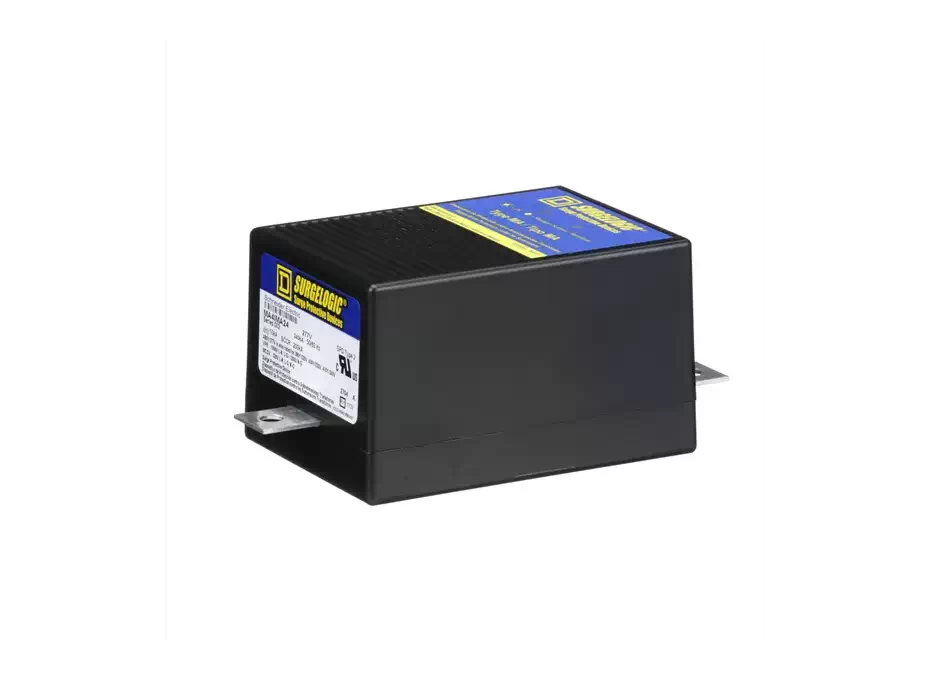

Surge protection module, Surgelogic
SKU:
MA4IMA24
In Stock - While Supplies LastQTY Available:3
Surge protection module, Surgelogic, MA, 240kA, 480Y/277 VAC, 3 phase, 4 wire, SPD type 2
Description
Main| Product | Surge protection module |
|---|
| Range | Surgelogic |
|---|
| Device Short Name | IMA |
|---|
| Accessory Category | Replacement part |
|---|
Complementary| Surge Current | 240 kA per phase |
|---|
| Voltage Rating | 480Y/277 V AC |
|---|
| Number of Phases | 3 phase |
|---|
| Wiring Configuration | 4-wire |
|---|
| Connection | Terminals |
|---|
| MCOV | 320 V |
|---|
| Nominal Discharge Current | 20 kA |
|---|
| SCCR | 200 kA |
|---|
| Local Signalling | Status LED green normal operation |
|---|
| Provided Equipment | Alarm enable/disable switch |
|---|
| Mounting Support | Panel mounting |
|---|
| Height | 6.25 in (158.8 mm) |
|---|
| Width | 3.26 in (82.8 mm) |
|---|
| Depth | 2.69 in (68.3 mm) |
|---|
Environment| Enclosure Rating | NEMA 2 |
|---|
| Enclosure Material | Black Plastic |
|---|
| Standards | UL 1449:ed. 4
UL 1283:ed. 5
CSA C22.2 No 8:1986
ANSI/IEEE C62.41
ANSI/IEEE C62.45
NEC 285 |
|---|
| Ambient Operating | 149 °F (65 °C) |
|---|
Ordering and shipping details| Category | 08467 - SURGE PROTECTION REPLACEMENT |
|---|
| Discount Schedule | DE1B |
|---|
| GTIN | 785901292999 |
|---|
| Nbr. of units in pkg. | 1 |
|---|
| Package weight(Lbs) | 32.80 oz (929.864 g) |
|---|
| Returnability | Yes |
|---|
| Country of origin | US |
|---|
Packing Units| Unit Type of Package 1 | PCE |
|---|
| Package 1 Height | 4.60 in (11.684 cm) |
|---|
| Package 1 width | 5.40 in (13.716 cm) |
|---|
| Package 1 Length | 8.40 in (21.336 cm) |
|---|
