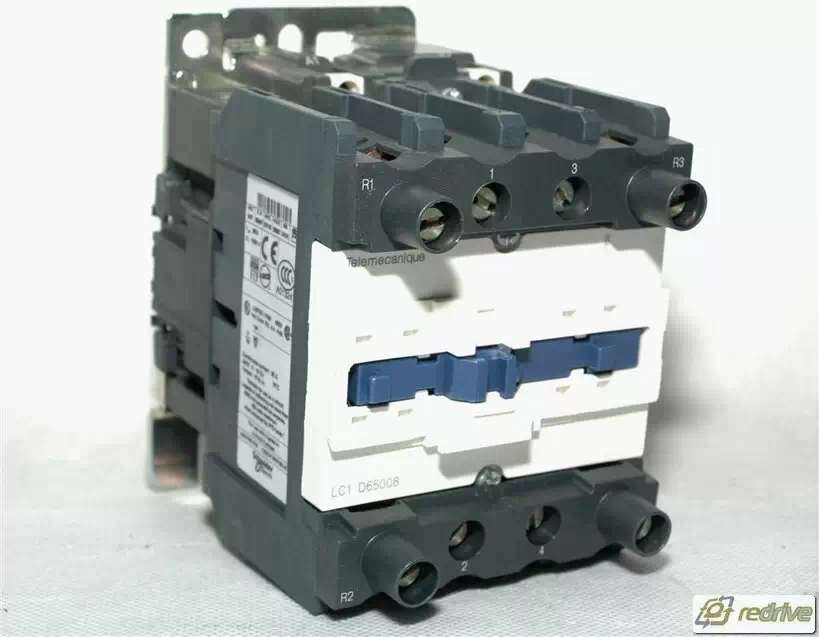

Schneider Electric Contactor Non-Reversing
SKU:
LC1D65008G6
In Stock - While Supplies LastQTY Available:2
Schneider Electric Contactor Non-Reversing 80A 110VAC coil
Description
| Category: |
TeSys D-Line LC1D IEC Contactors |
| Manufacturer: |
Schneider Electric |
| Mfg ID / Part Number: |
LC1D65008G6, LC1 D65008 G6, LC1D-65008-G6 |
| Contact Configuration: |
4-Pole (2 NO/2 NC) |
| Inductive Amperes (AC3): |
Not Rated |
| Resistive Amperes (AC1): |
80A |
| Coil Voltage: |
110VAC@50/60Hz, G6 |
| Coil Consumption Inrush: |
140 VA |
| Coil Consumption Sealed: |
13 VA |
| Horsepower Rating (1-Phase): |
Not Rated |
| Horsepower Rating (3-Phase): |
Not Rated |
| Contactor Type: |
Non-Reversing |
| Type: |
TeSys D |
| Maximum Voltage Rating: |
600 VAC |
| Terminal Type: |
Screw Clamp |
| Mounting Style: |
35mm DIN Rail |
| Auxiliary Contacts: |
1NO-1NC |
| Features: |
Touch-Safe Terminals for Power Cabling |
| Dimensions: |
H:127mm x W:85mm x D:125mm |
| Power Wire Size: |
#12 to #20 AWG |
| Approvals / Standards: |
UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant |
| Country of Origin: |
CZ |
| Shipping weight: |
5 lb |
