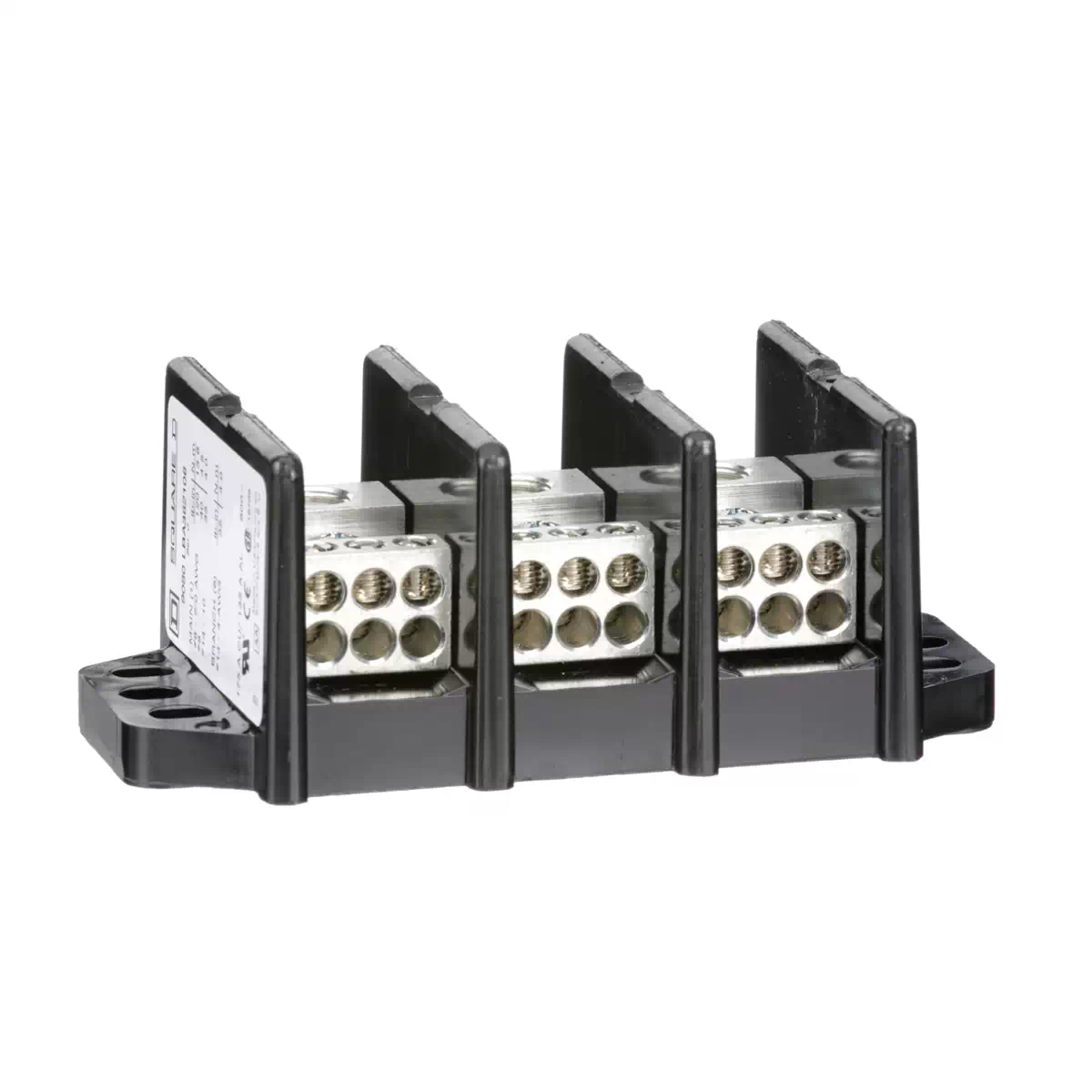

Power Distribution Block, 3 pole, 1 line, 6 load
SKU:
9080LBA362106
In Stock - While Supplies LastQTY Available:1
Power Distribution Block, 3 pole, 1 line, 6 load, 175 A 600 V CU / 135 A 600 V AL
Description
Main| Range | 9080LB |
|---|
| Product | Power Distribution Block |
|---|
| Current Rating | 175 A copper
135 A aluminium |
|---|
| Short Circuit Current Rating | 65 kA |
|---|
Complementary| Voltage Rating | 600 V AC/DC |
|---|
| Mounting Type | Surface mount |
|---|
| number of poles | 3 |
|---|
| Terminals per Pole | 1 line
6 load |
|---|
| Wire Size | Line 2, AWG 14...AWG 2/0, copper or aluminium
Load 6, AWG 14...AWG 4, copper or aluminium |
|---|
| Electrical Connection | Tin plated aluminium lugs |
|---|
| SCCR | 100 kA UL 508 A |
|---|
| Ambient Air Temperature for Operation | -40…302 °F (-40…150 °C) |
|---|
| Block Material | Phenolic block |
|---|
| Terminal Tightening Torque | Line lug 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium
Line lug 120 lbf.in (13.56 N.m) AWG 6...AWG 2/0 copper or aluminium
Line lug 35 lbf.in (3.95 N.m) AWG 14...AWG 10 copper or aluminium
Load lug 35 lbf.in (3.95 N.m) AWG 14...AWG 4 copper or aluminium |
|---|
| wire stripping length | Load 0.38 in (9.65 mm) top
Load 0.75 in (19.05 mm) bottom
Line 0.69 in (17.53 mm) |
|---|
| Height | 2.9 in (73.66 mm) |
|---|
| Width | 5.38 in (136.65 mm) |
|---|
| Depth | 2.06 in (52.32 mm) |
|---|
| Net Weight | 0.77 lb(US) (0.35 kg) |
|---|
Environment| Certifications | UL recognized E60616 CCN XCFR2
CSA file 70361 class 6228 01
CE |
|---|
Ordering and shipping details| Category | 21711-9080 LB |
|---|
| Discount Schedule | CP1 |
|---|
| GTIN | 785901132615 |
|---|
| Nbr. of units in pkg. | 1 |
|---|
| Package weight(Lbs) | 12.32 oz (349.266 g) |
|---|
| Returnability | Yes |
|---|
| Country of origin | US |
|---|
