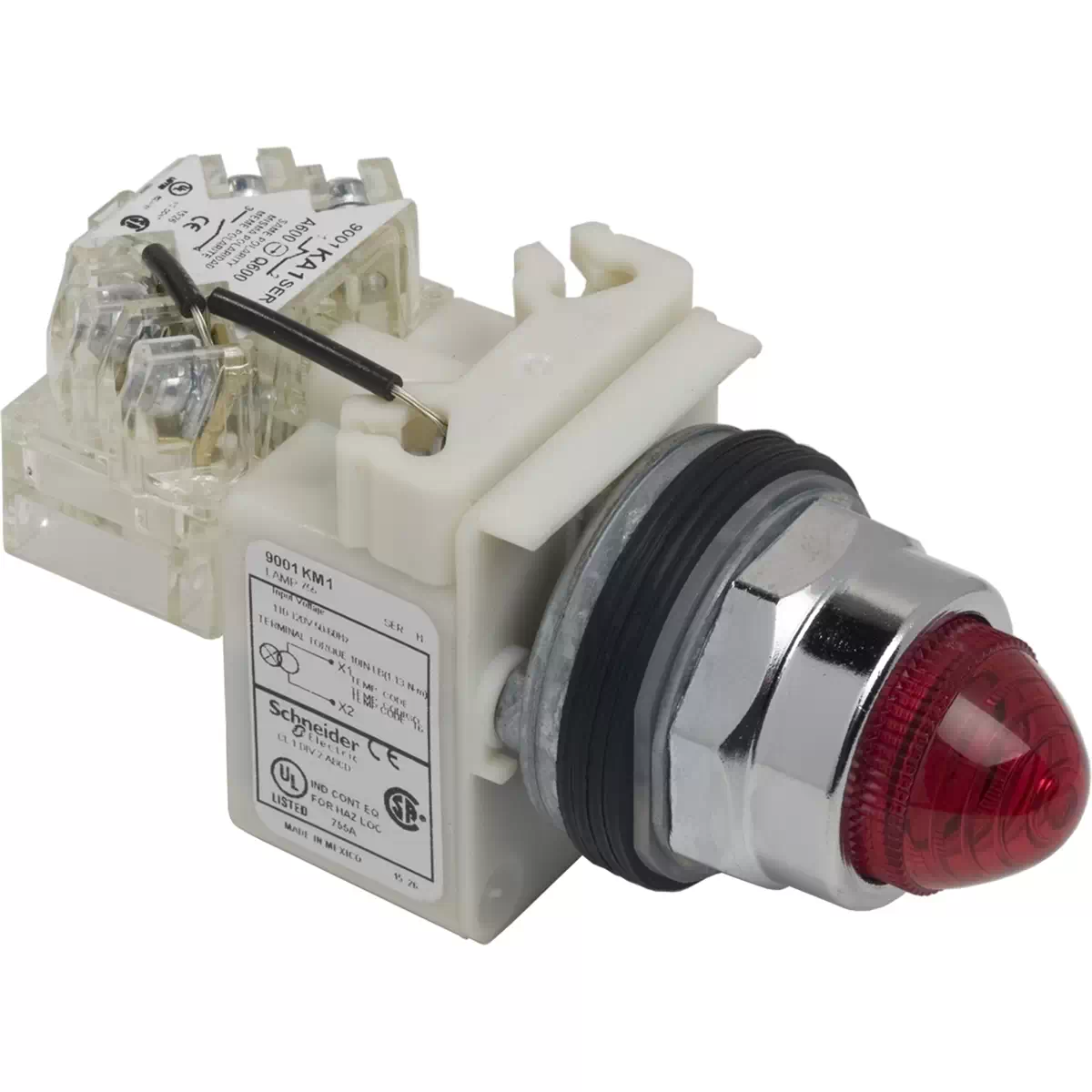

30mm push button, Type K, push to test pilot light, transformer light module, 120VAC 60Hz, red domed lens, NEMA 4, 13
| Range of Product |
Harmony 9001K |
| Product or Component Type |
Pilot light |
| device short name |
K |
Complementary
| bezel material |
Chromium plated metal |
| mounting diameter |
1.18 in (30 mm) |
| lens type |
Domed plastic |
| cap/operator or lens colour |
Red |
| light block supply |
Via transformer 110 V AC 50/60 Hz
Via transformer 120 V AC 50/60 Hz |
| shape of screw head |
Round |
| Operating Mode |
Push-to-test |
