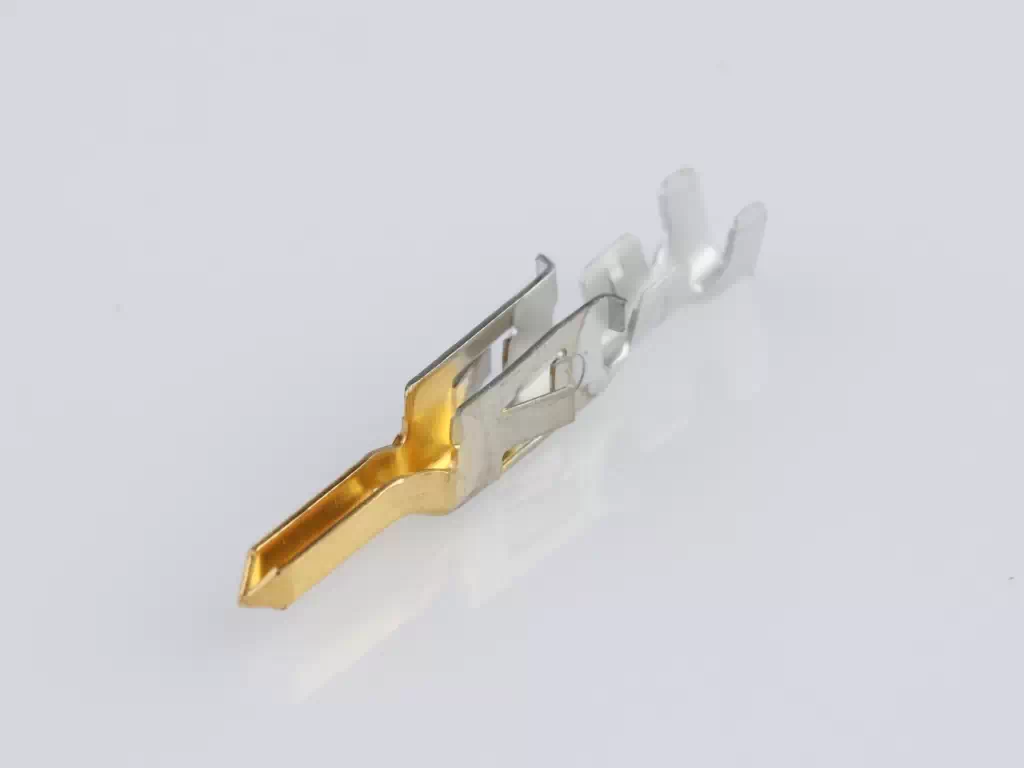

Mini-Fit Male Crimp Terminal, Gold (Au) over Brass
double-tap to zoom

Mini-Fit Male Crimp Terminal, Gold (Au) over Brass

MPN: 39-00-0054

$0.60
Add To Cart
In Stock - While Supplies Last
QTY Available:1005+

Mini-Fit Male Crimp Terminal, Gold (Au) over Brass, 18-24 AWG

Description

Physical

Durability (mating cycles max) 30
Gender Male
Material - Metal Brass
Material - Plating Mating Gold
Material - Plating Termination Tin-Lead
Net Weight 125.898/mg
Packaging Type Bag
Plating min - Mating 0.762µm
Plating min - Termination 2.032µm
Termination Interface: Style Crimp or Compression
Wire Insulation Diameter 1.30-3.10mm
Wire Size AWG 18, 20, 22, 24
Wire Size mm² N/A

Electrical

Current - Maximum per Contact 9.0A
Voltage - Maximum 600V
