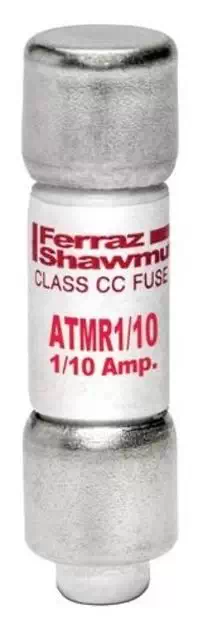

FUSE, 0.1A, 600V, CLASS CC
SKU:
ATMR-110
In Stock - While Supplies LastQTY Available:14+
600 VAC/VDC, 0.1 Amp, Fast-Acting General Purpose Fuse
Description
Clip Mount, 1-1/2″ OAL, 100 at AC/DC kA Rating, 13/32″ Diam
| Fuse Type | General Purpose |
| Amperage (mA) | 100 |
| Amperage | 0.10 |
| Voltage | 600 VAC/VDC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cylindrical |
| Overall Length (mm) | 38.10 |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Diameter (mm) | 10.50 |
| Overall Diameter (Inch) | 13/32 |
| Overall Diameter (Decimal Inch) | 0.4100 |
| Material | GMG |
| Mounting Type | Clip |
| Rejection Setting | NonRejecting |
| Interrupting Rating (kA) | 100 @ AC/DC |
| Standards Met | CSA C22.2 No. 248.14 Certified; UL 248-14; UL Listed 248-14 File E33925 |
