Display (RD96)

Display (RD96)

SKU: METSEPM89RD96
$670.00
Add To Cart
In Stock - While Supplies Last
QTY Available:2
Brand: Schneider Electric

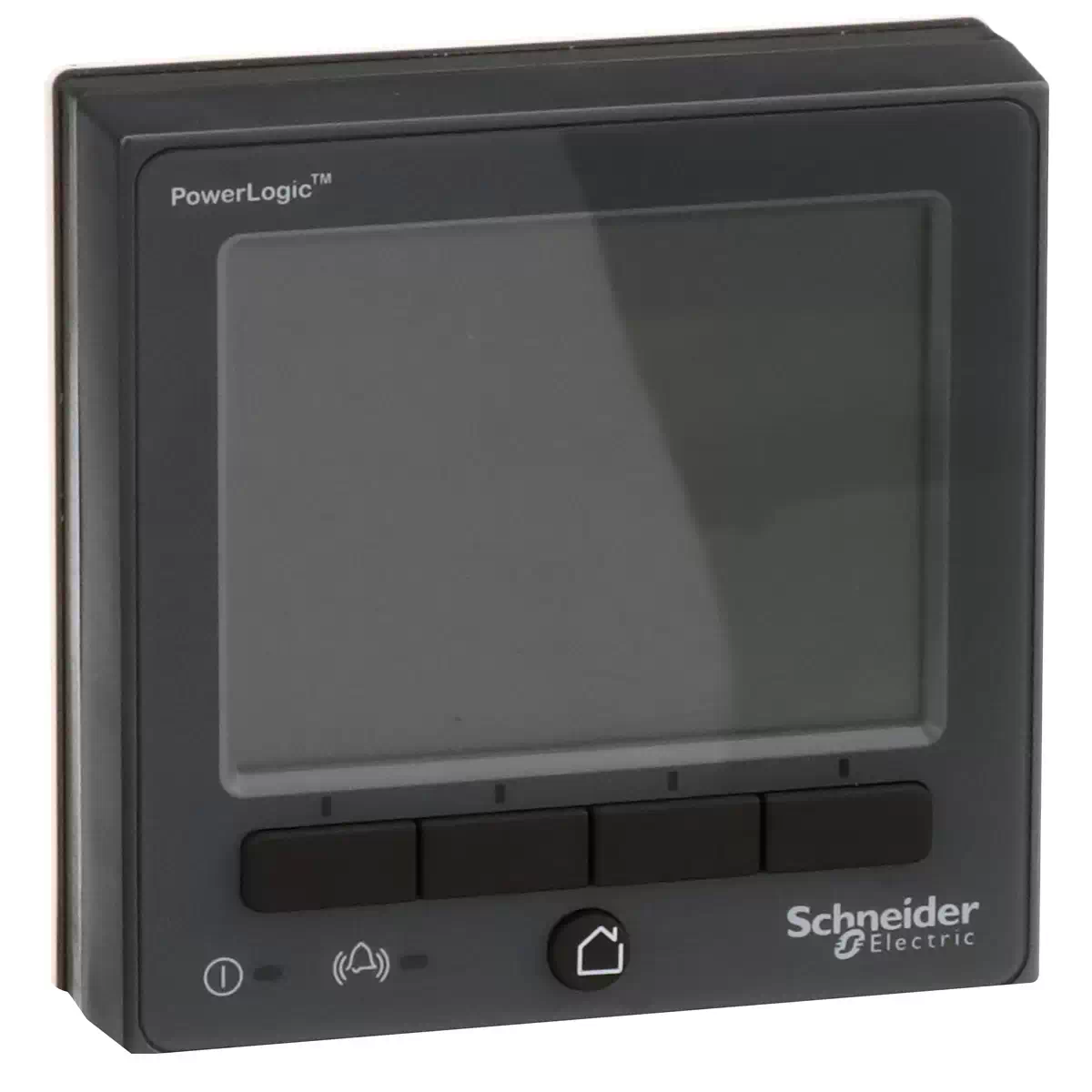

Display (RD96) compatible with PowerLogic PM8000, ION7400 and ION9000. 96mm by 96mm color graphical LCD with push-button interface. Information avaiable from the display: power, energy consumption, harmonics, frequency, voltage, current, alarms and input output status. Viewable area: color TFT LCD, 320 pixels by 240 pixels QVGA. Panel mounting using a 30 mm push-button hole or 1/4 DIN cutout. Ingress Protection IP54 (UL type 12) rating.

Description

  • Range Compatibility: PowerLogic PM8000 || PowerLogic ION7400
  • Product Or Component Type: remote display
  • Range: PowerLogic
  • Display Type: colour TFT LCD
  • Device Application: human-machine dialogue application

Complementary

  • Information Displayed: energy consumption || voltage || power || harmonic distortion || frequency || current || system alarm || I/O status
  • Height: 96 mm
  • Display Resolution: 320 x 240 pixels QVGA
  • Net Weight: 300 g
  • Provided Equipment: Mounting Hardware || cable 3 m
  • Messages Display Capacity: graphic objects (bargraph, button, light...)
  • Connector Type: RJ45
  • Control Type: 5 x push-button
  • Mounting Mode: flush-mounted
  • Local Signalling: status LED Green) || alarm LED Red)
  • Mounting Support: framework remote display
  • Display Size: 3.5 inch
  • Width: 96 mm
  • Projecting Depth: 27 mm
