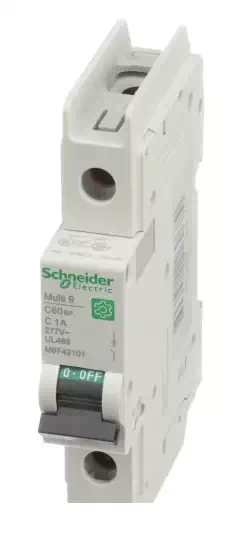

Circuit Breaker, Miniature, Multi9, 1P, 1A, C-Curve, Branch Protection
| Brand |
Square D (Schneider Electric) |
| Actuator Type |
Toggle |
| Amperage Rating |
1 |
| Color |
Gray |
| Connection type |
Tunnel Terminal |
| Dimensions |
4.06 in H x 0.71 in W x 2.83 in D |
| Enclosure Type |
IP20/IP40 |
| Frequency Rating |
50/60 |
| Interrupt Rating |
10 |
| Mounting type |
Clip-On/DIN Rail |
| Number of Poles |
1 |
| Series |
C60BP |
| Temperature Rating (Degrees F) |
-22 to 158 |
| Trip Range |
8.5X In AC/12X In DC |
| Trip Type |
C-Curve/Thermal Magnetic |
| Type |
Multi-Standard |
| Voltage Rating |
240/415 VAC, 60 VDC |
| Wire Size |
18 to 8 AWG Copper |
