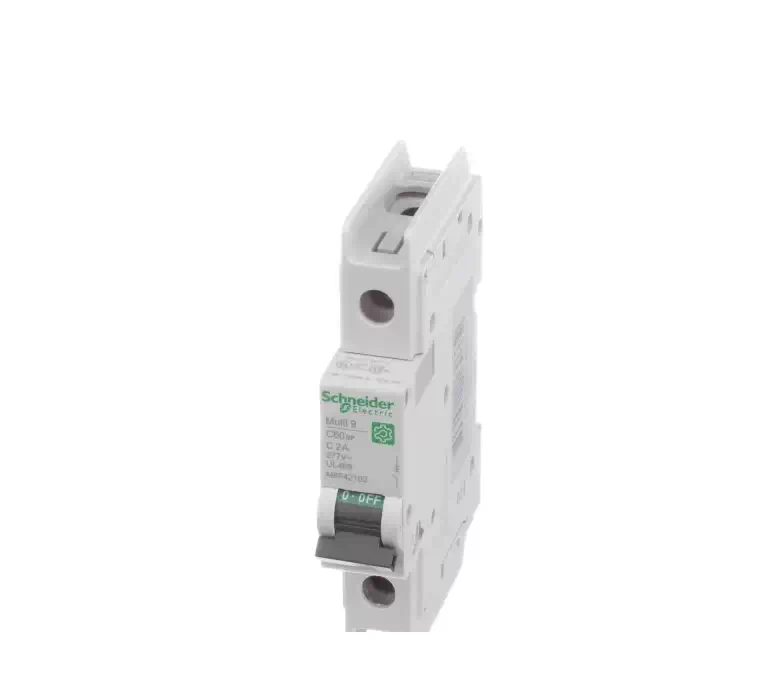

Circuit Breaker, Miniature, Multi9, 1P, 2A, C-Curve, Branch Protection
|
range
|
Multi 9
|
|
product name
|
Multi 9 C60
|
|
Product or Component Type
|
Miniature circuit-breaker
|
|
device short name
|
C60BP
|
|
device application
|
Distribution
|
|
poles description
|
1P
|
|
number of protected poles
|
1
|
|
Line Rated Current
|
2 A 77 °F (25 °C) EN/IEC 60947-2
|
|
network type
|
DC
AC
|
|
trip unit technology
|
Thermal-magnetic
|
|
curve code
|
C
|
|
breaking capacity
|
3 kA Icu 415 V AC EN/IEC 60947-2
10 kA Icu 240 V AC EN/IEC 60947-2
20 kA Icu 60 V DC EN/IEC 60947-2
3 kA Icu 415 V AC GB 14048.2
10 kA Icu 240 V AC GB 14048.2
20 kA Icu 60 V DC GB 14048.2
10 kA AIR 277 V AC UL 489
14 kA AIR 240 V AC UL 489
14 kA AIR 120 V AC UL 489
10 kA AIR 60 V DC UL 489
10 kA AIR 277 V AC CSA C22.2 No 5
14 kA AIR 240 V AC CSA C22.2 No 5
14 kA AIR 120 V AC CSA C22.2 No 5
10 kA AIR 60 V DC CSA C22.2 No 5
|
|
suitability for isolation
|
Yes EN/IEC 60947-2
|
|
Standards
|
EN/IEC 60947-2
GB 14048.2
UL 489
CSA C22.2 No 5
|
|
product certifications
|
IEC
CCC
CSA
UL
|
|
Complementary
|
|
[Ue] rated operational voltage
|
240 V AC 50/60 Hz
415 V AC 50/60 Hz
60 V DC
|
|
magnetic tripping limit
|
8.5 x In +/- 20 % AC
12 x In +/- 20 % DC
|
|
[Ics] rated service breaking capacity
|
2.25 kA 75 % EN/IEC 60947-2 - 415 V AC
7.5 kA 75 % EN/IEC 60947-2 - 240 V AC
2.25 kA 75 % GB 14048.2 - 415 V AC
7.5 kA 75 % GB 14048.2 - 240 V AC
15 kA 75 % GB 14048.2 - 60 V DC
15 kA 75 % EN/IEC 60947-2 - 60 V DC
|
|
[Ui] rated insulation voltage
|
500 V AC EN/IEC 60947-2
|
|
[Uimp] rated impulse withstand voltage
|
6 kVEN/IEC 60947-2
|
|
contact position indicator
|
Yes
|
|
control type
|
Toggle
|
|
local signalling
|
ON/OFF indication
|
|
Mounting Mode
|
Clip-on
|
|
Mounting Support
|
DIN rail
|
|
9 mm pitches
|
2
|
|
Height
|
4.06 in (103 mm)
|
|
Width
|
0.71 in (18 mm)
|
|
Depth
|
2.83 in (72 mm)
|
|
color
|
Gray
|
|
mechanical durability
|
20000 cycles
|
|
electrical durability
|
10000 cycles
|
|
provision for padlocking
|
Padlockable
|
|
connections - terminals
|
Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid
Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule
Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible
|
|
wire stripping length
|
0.55 in (14 mm) top or bottom
|
|
tightening torque
|
22.13 lbf.in (2.5 N.m) top or bottom
|
|
earth-leakage protection
|
Without
|
|
Environment
|
|
IP degree of protection
|
IP20IEC 60529
IP40 modular enclosure)IEC 60529
|
|
pollution degree
|
3 EN/IEC 60947-2
|
|
tropicalisation
|
2 IEC 60068-1
|
|
relative humidity
|
95 % 131 °F (55 °C)
|
|
operating altitude
|
0...6561.68 ft (0...2000 m)
|
|
ambient air temperature for operation
|
-22…158 °F (-30…70 °C)
|
|
Ambient Air Temperature for Storage
|
-40…176 °F (-40…80 °C)
|
