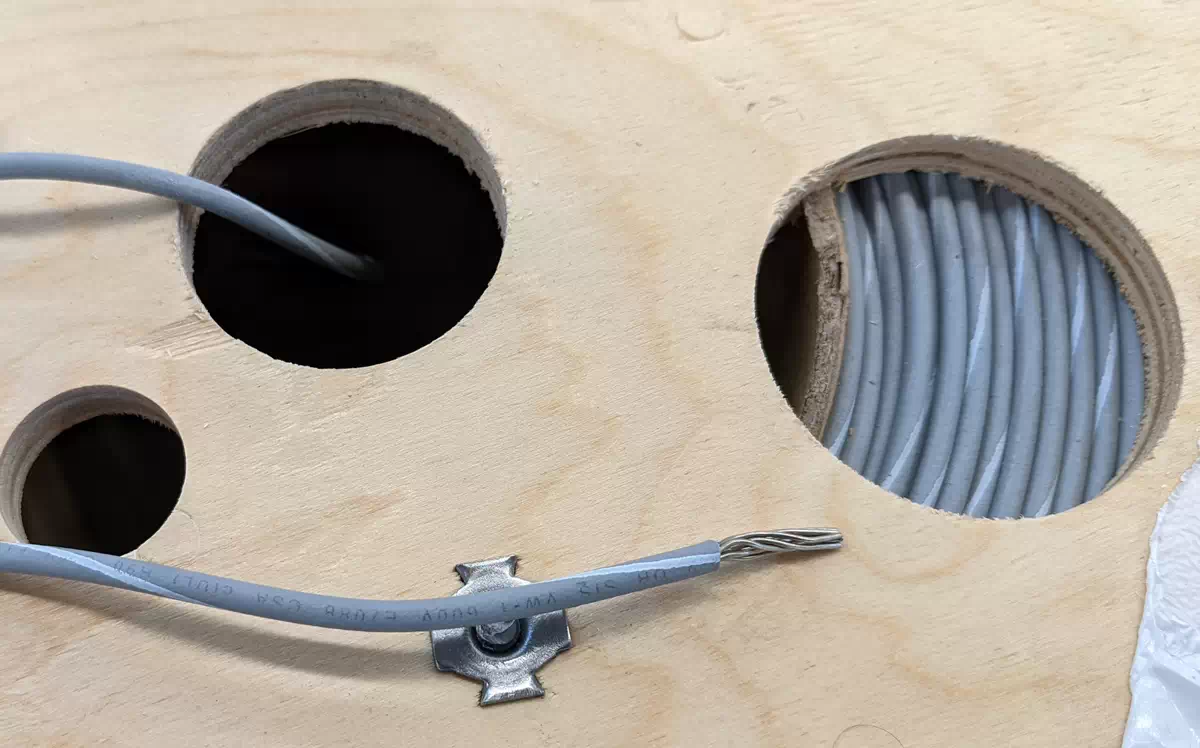

SIS switchboard wire. Tinned, annealed stranded copper conductors. A separator tape may be applied over the conductor. Cross-linked polyethylene (XLP) insulation. 90C. 600 volts. Resists heat, moisture, flame, oil, and corrosive vapors.
SIS12T07-89
Specifications:
| Conductor Material |
TINNED COPPER |
| Insulation Material |
XLPE-CROSS-LINKED POLYETHYLENE |
| Conductor Size |
12 AWG (AMERICAN WIRE GAUGE) |
| Conductor Stranding |
7 STRANDS IN EACH CONDUCTOR |
| Insulation Color |
GRAY (SLATE) WHITE STRIPE |
| Product Type |
SWITCHBOARD |
| RoHS Compliant |
YES |
| Shielded |
NOT SHIELDED |
| Temperature Rating |
90 DEGREES CENTIGRADE (194 F) |
